Do we have any known examples of the "harmonic response" phenomenon causing structural failures in spacecraft?

The "harmonic response" phenomenon is a critical concern in the design and operation of spacecraft, particularly when it comes to structural integrity. Harmonic response refers to the way a structure responds to external forces, such as vibrations, and can lead to catastrophic failures if not properly addressed. In this article, we will explore the concept of harmonic response and examine known examples of its impact on spacecraft.

Harmonic response is a complex phenomenon that involves the interaction between a structure and external forces. When a spacecraft is subjected to vibrations, the structure responds by oscillating at specific frequencies, known as harmonics. These harmonics can be either in-phase or out-of-phase with the external forces, leading to either amplification or cancellation of the forces.

In spacecraft design, harmonic response is a critical consideration due to the harsh environment of space. Spacecraft are exposed to a wide range of external forces, including vibrations, acoustic noise, and thermal fluctuations. If not properly addressed, these forces can lead to structural failures, compromising the safety of the crew and the success of the mission.

While there are limited examples of harmonic response causing structural failures in spacecraft, there are several notable incidents that highlight the importance of this phenomenon.

The SpaceX Starship Incident

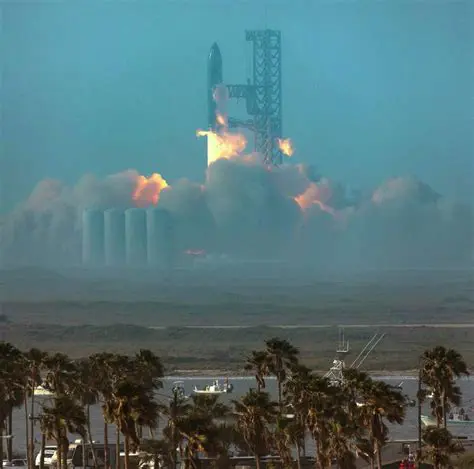

In 2022, SpaceX's Starship spacecraft experienced a propellant leak during a test flight. Engineers determined that the most likely cause of the leak was a harmonic response several times stronger than predicted, suggesting that the vibrations during the ship's climb into space were in resonance with the structure. This incident highlights the importance of considering harmonic response in spacecraft design.

The NASA Space Shuttle Program

During the NASA Space Shuttle program, several incidents were reported where the shuttle's structure was subjected to excessive vibrations, leading to harmonic response. In one notable incident, the shuttle's thermal protection system was damaged due to excessive vibrations during re-entry. This incident led to a major redesign of the shuttle's structure to mitigate harmonic response.

The European Space Agency's (ESA) Rosetta Mission

The ESA's Rosetta mission, which successfully landed a probe on Comet 67P/Churyumov-Gerasimenko, experienced a harmonic response issue during its descent. The probe's structure was subjected to excessive vibrations, which led to a harmonic response that compromised the probe's stability. This incident highlights the importance of considering harmonic response in spacecraft design, particularly when it comes to landing and descent operations.

To mitigate harmonic response in spacecraft design, engineers use a variety of techniques, including:

Modal analysis: This involves analyzing the structure's natural frequencies and modes of vibration to identify potential harmonic response issues.
Vibration testing: This involves subjecting the structure to controlled vibrations to test its response and identify potential harmonic response issues.
Structural optimization: This involves optimizing the structure's design to minimize its natural frequencies and modes of vibration, reducing the likelihood of harmonic response.
Damping: This involves adding damping materials or systems to the structure to reduce its response to external forces and mitigate harmonic response.

In conclusion, harmonic response is a critical concern in spacecraft design, particularly when it comes to structural integrity. While there are limited examples of harmonic response causing structural failures in spacecraft, the incidents highlighted in this article demonstrate the importance of considering this phenomenon in spacecraft design. By using techniques such as modal analysis, vibration testing, structural optimization, and damping, engineers can mitigate harmonic response and ensure the safety and success of spacecraft missions.

Based on the findings of this article, we recommend the following areas for future research:

Development of more advanced modal analysis techniques: To better understand the complex interactions between structures and external forces.
Improved vibration testing methods: To more accurately simulate the external forces that spacecraft are subjected to in space.
Development of more effective damping systems: To reduce the response of structures to external forces and mitigate harmonic response.
Investigation of the impact of harmonic response on spacecraft systems: To better understand the effects of harmonic response on spacecraft systems and identify potential mitigation strategies.
Harmonic Response in Spacecraft: A Q&A Article =====================================================

In our previous article, we explored the concept of harmonic response and its impact on spacecraft design. In this article, we will answer some of the most frequently asked questions about harmonic response in spacecraft.

Q: What is harmonic response, and why is it a concern in spacecraft design?

A: Harmonic response refers to the way a structure responds to external forces, such as vibrations, and can lead to catastrophic failures if not properly addressed. In spacecraft design, harmonic response is a concern because it can compromise the safety of the crew and the success of the mission.

Q: What are the main causes of harmonic response in spacecraft?

A: The main causes of harmonic response in spacecraft are:

Vibrations: Spacecraft are exposed to a wide range of vibrations, including those caused by launch, re-entry, and in-orbit operations.
Acoustic noise: Spacecraft are also exposed to acoustic noise, which can cause vibrations and lead to harmonic response.
Thermal fluctuations: Temperature changes can cause thermal expansion and contraction, leading to vibrations and harmonic response.

Q: How can harmonic response be mitigated in spacecraft design?

A: Harmonic response can be mitigated in spacecraft design by using techniques such as:

Modal analysis: This involves analyzing the structure's natural frequencies and modes of vibration to identify potential harmonic response issues.
Vibration testing: This involves subjecting the structure to controlled vibrations to test its response and identify potential harmonic response issues.
Structural optimization: This involves optimizing the structure's design to minimize its natural frequencies and modes of vibration, reducing the likelihood of harmonic response.
Damping: This involves adding damping materials or systems to the structure to reduce its response to external forces and mitigate harmonic response.

Q: What are some examples of harmonic response causing structural failures in spacecraft?

A: While there are limited examples of harmonic response causing structural failures in spacecraft, there are several notable incidents that highlight the importance of this phenomenon. These include:

The SpaceX Starship incident: In 2022, SpaceX's Starship spacecraft experienced a propellant leak during a test flight. Engineers determined that the most likely cause of the leak was a harmonic response several times stronger than predicted, suggesting that the vibrations during the ship's climb into space were in resonance with the structure.
The NASA Space Shuttle program: During the NASA Space Shuttle program, several incidents were reported where the shuttle's structure was subjected to excessive vibrations, leading to harmonic response. In one notable incident, the shuttle's thermal protection system was damaged due to excessive vibrations during re-entry.
The European Space Agency's (ESA) Rosetta mission: The ESA's Rosetta mission, which successfully landed a probe on Comet 67P/Churyumov-Gerasimenko, experienced a harmonic response issue during its descent. The probe's structure was subjected to excessive vibrations, which led to a harmonic response that compromised the probe's stability.

Q: How can harmonic response be tested and validated in spacecraft design?

A: Harmonic response can be tested and validated in spacecraft design by using techniques such as:

Modal analysis: This involves analyzing the structure's natural frequencies and modes of vibration to identify potential harmonic response issues.
Vibration testing: This involves subjecting the structure to controlled vibrations to test its response and identify potential harmonic response issues.
Structural testing: This involves subjecting the structure to various loads and stresses to test its response and identify potential harmonic response issues.
Simulation and modeling: This involves using computer simulations and models to predict the behavior of the structure under various loads and stresses.

Q: What are some best practices for mitigating harmonic response in spacecraft design?

A: Some best practices for mitigating harmonic response in spacecraft design include:

Conducting thorough modal analysis and vibration testing: This involves analyzing the structure's natural frequencies and modes of vibration and subjecting the structure to controlled vibrations to test its response.
Optimizing the structure's design: This involves optimizing the structure's design to minimize its natural frequencies and modes of vibration, reducing the likelihood of harmonic response.
Using damping materials or systems: This involves adding damping materials or systems to the structure to reduce its response to external forces and mitigate harmonic response.
Conducting regular structural testing and validation: This involves subjecting the structure to various loads and stresses to test its response and identify potential harmonic response issues.

In conclusion, harmonic response is a critical concern in spacecraft design, particularly when it comes to structural integrity. By understanding the causes and effects of harmonic response and using techniques such as modal analysis, vibration testing, structural optimization, and damping, engineers can mitigate harmonic response and ensure the safety and success of spacecraft missions.
